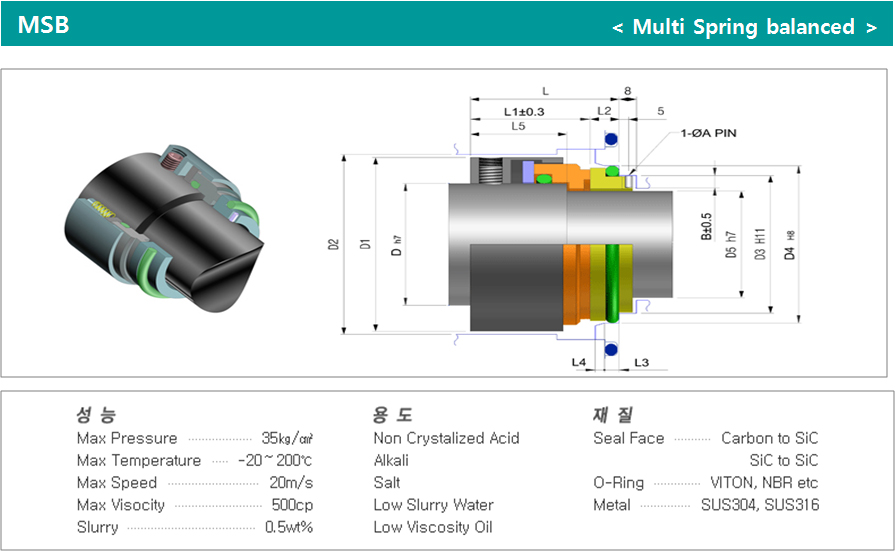

Mechanical Seal

메뉴 접기

회사제품

치수표 () 안의 치수표는 2 오링 Type 치수임

치수표 테이블
SIZE D D1 D2 D3 D4 D5 L L1 L2 L3 L4 L5 A B
025 25 39 41 29 35 20 44 34 10 5.5 2.0 24 3 3.5
028 28 42 44 33 39 24 44 34 10 5.5 2.0 24 3 3.5
030 30 44 46 34 40 25 44 34 10 5.5 2.0 24 3 3.5
032 32 46 48 37 43 27 44 34 10 5.5 2.0 24 3 3.5
033 33 47 49 37 43 28 44 34 10 5.5 2.0 24 3 3.5
035 35 49 51 39 45 30 44 34 10 5.5 2.0 24 3 3.5
038 38 55 58 42 48 33 45 35 10 5 2.0 25 3 3.5
040 40 57 60 44 50 35 45 35 10 5 2.0 25 3 3.5
042 42 59 62 49 56 37 48 37 11 5 2.0 25 4 4.0
043 43 60 63 49 56 38 48 37 11 5 2.0 25 4 4.0
045 45 62 65 51 58 40 48 37 11 5 2.0 25 4 4.5
048 48 65 68 54 61 43 48 37 11 5 2.0 25 4 4.5
050 50 67 70 56 63 45 48 37 11 6 2.0 25 4 4.5
053 53 70 73 59 66 48 48 37 11 6 2.0 25 4 4.5
055 55 72 75 62 70 50 50 37 13 6 2.5 25 4 4.5
060 60 77 85 67 75 55 50 37 13 6 2.5 25 4 5.0
063 63 80 88 70 78 58 50 37 13 6 2.5 25 4 5.0
065 65 82 90 72 80 60 50 37 13 6 2.5 25 4 5.0
070 70 87 95 77 85 65 50 37 13 6 2.5 25 4 5.0
075 75 92 104 83 92(110) 70 53 38 15(30) 7 2.5 25 4 5.0
080 80 97 109 88 97 75 53 38 15 7 2.5 25 4 5.0
085 85 102 114 95 105 80 53 37.5 15.5 7 3.0 25 4 6.0
090 90 107 119 100 110 85 53 37.5 15.5 7 3.0 25 4 6.0
095 95 112 124 105 115 90 53 37.5 15.5 7 3.0 25 4 6.0
100 100 117 129 110 120 95 53 37.5 15.5 7 3.0 25 4 6.0
